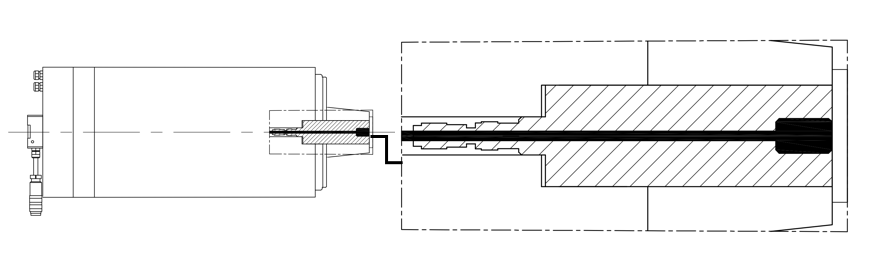

Acoustic Monitoring System for Built-in Spindles

In high-precision grinding and dressing applications, the stable operation of built-in spindles and equipment safety are critical. To reduce the risk of spindle damage or unplanned downtime caused by abnormal contact or operator errors, we utilize an Acoustic Monitoring System that provides non-contact, high-sensitivity protection through real-time sound wave analysis, ensuring machining quality and extending equipment lifespan.

This system features high-precision acoustic sensors that capture and analyze sound signals during machining, comparing them with reference data. When detecting anomalies such as abnormal wheel contact, spindle overload, or workpiece collision, the system triggers an immediate stop within milliseconds, preventing damage to critical components, reducing costly repairs, and avoiding production interruptions.

Beyond collision prevention, the Acoustic Monitoring System continuously monitors dressing quality to avoid over-dressing, extending grinding wheel life by approximately 25% while reducing replacement frequency and consumable costs. It can also optimize idle travel strategies, shortening machining cycles and increasing productivity and utilization rates.

Key Benefits

• Real-time collision prevention: Protects built-in spindle and machine safety
• Dressing quality monitoring: Extends wheel life and ensures machining accuracy
• Increased production efficiency: Reduces idle time and enhances overall productivity

With this technology, our built-in spindles deliver both machining stability and equipment protection in precision grinding, mold manufacturing, and high-accuracy applications, offering a reliable and efficient solution for smart manufacturing.
