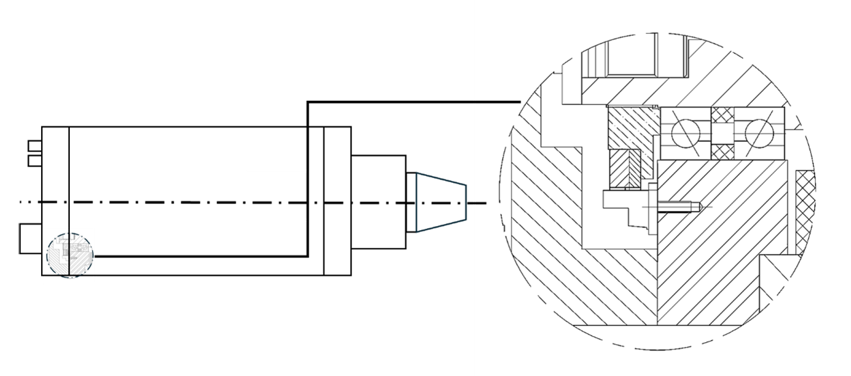

Application of Encoders in Built-in Spindles
In modern high-precision machining and high-speed cutting applications, the combination of high-resolution encoders and Permanent Magnet Synchronous Motors (PMSM) in built-in spindles has become a core technology for improving equipment performance and machining quality. Encoders provide precise speed and position feedback control, enabling spindles to maintain stable operation at high speeds, reduce energy consumption, extend service life, and unlock advanced machining functions.
- Reduced Energy Consumption & Improved Efficiency
By integrating encoders with PMSM, spindle speed and torque can be controlled with high accuracy, preventing energy losses caused by slip in traditional induction motors. This results in approximately 10–15% improvement in energy efficiency, reducing power usage and operational costs, which is especially valuable for long-running CNC spindles.
- Smooth Operation & Lower Mechanical Stress
Encoders detect real-time changes in spindle speed and position, providing immediate feedback to the drive system. This allows rapid correction of speed deviations, minimizing vibration and speed fluctuations. As a result, wear on bearings, gears, and other components is reduced, ensuring stable performance even in extended high-precision grinding or mold manufacturing operations.
- High-Precision Synchronous Tapping
High-resolution encoders support synchronous tapping, ensuring consistent thread accuracy and depth even under high-speed or complex machining conditions. This capability is essential for aerospace components, precision machinery, and medical device manufacturing.
- High CNC System Compatibility
Encoder-equipped spindles integrate seamlessly with most CNC control systems, enabling precise dynamic control and multi-axis coordination. This high compatibility and accuracy make them ideal for advanced machining centers, built-in grinding spindles, and automated production lines.
By combining high-resolution encoders with PMSM, built-in spindles achieve new levels of efficiency, precision, and durability—meeting the demands of advanced manufacturing for high performance and reliability.
