Specification
| Housing Diameter (mm) | ϕ170h6 |
|---|---|
| Operating Speed (RPM) | 24,000 |
| Power S1/S6 (kW) | 30/40 |
| Nominal Speed (RPM) | 10,000 |
| Voltage (V) | 220V/380V |
| Motor Type | Asynchronous |
| Torgue S1/S6 (Nm) | 30/39 |
| Bearing Lubrication | Oil-Air |
| Tool Interface | HSK-A63 |
| Motor Cooling | Water |
| Axial Rigidity (N/um) | 200 |
| Radial Rigidity (N/um) | 210 |
Features
- HSK Tool Interface: Provides rigid and precise clamping ideal for high-speed cutting.
- Customizable Configuration : Tool interface and coolant-through options tailored to specific machining needs.
- Encoder Integration: Improves rotational control and positioning precision.
- Ceramic Bearings: High-durability ceramic bearings with low thermal expansion ensure long-term accuracy.
- Stable Lubrication : Oil-air lubrication delivers consistent performance and extends spindle life.

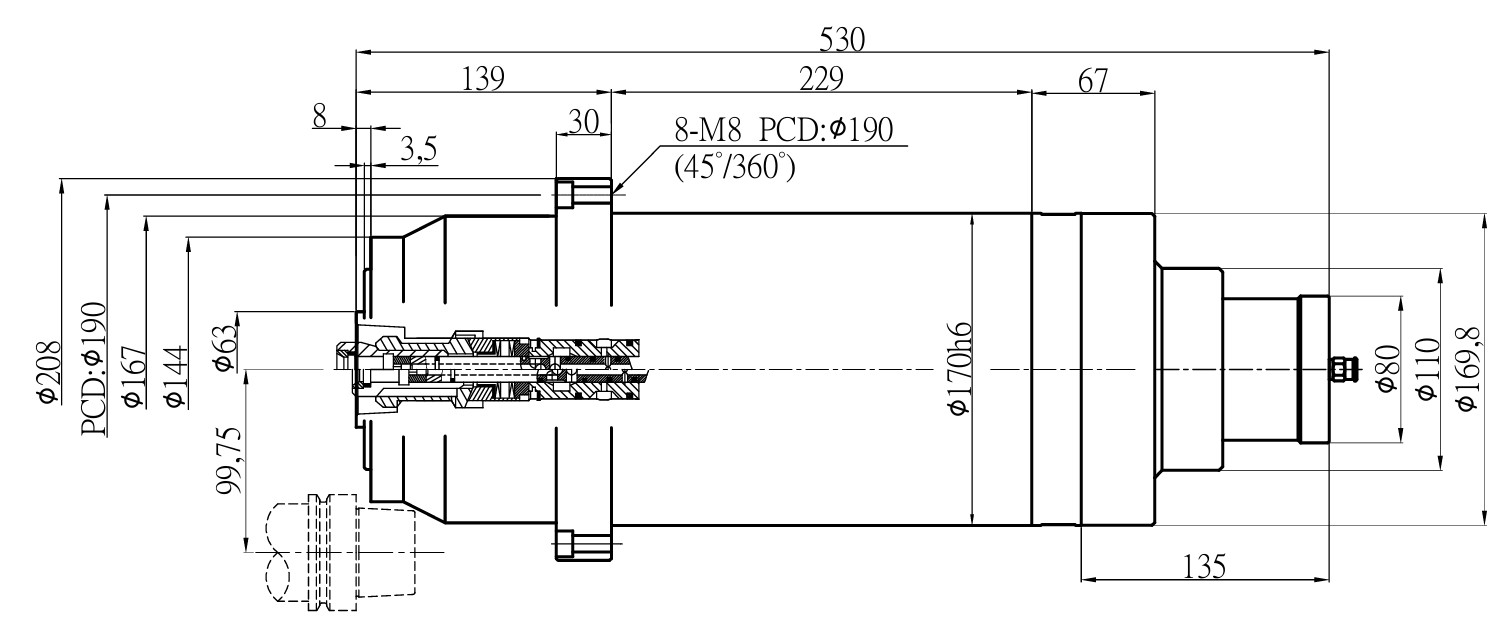

Dimensions

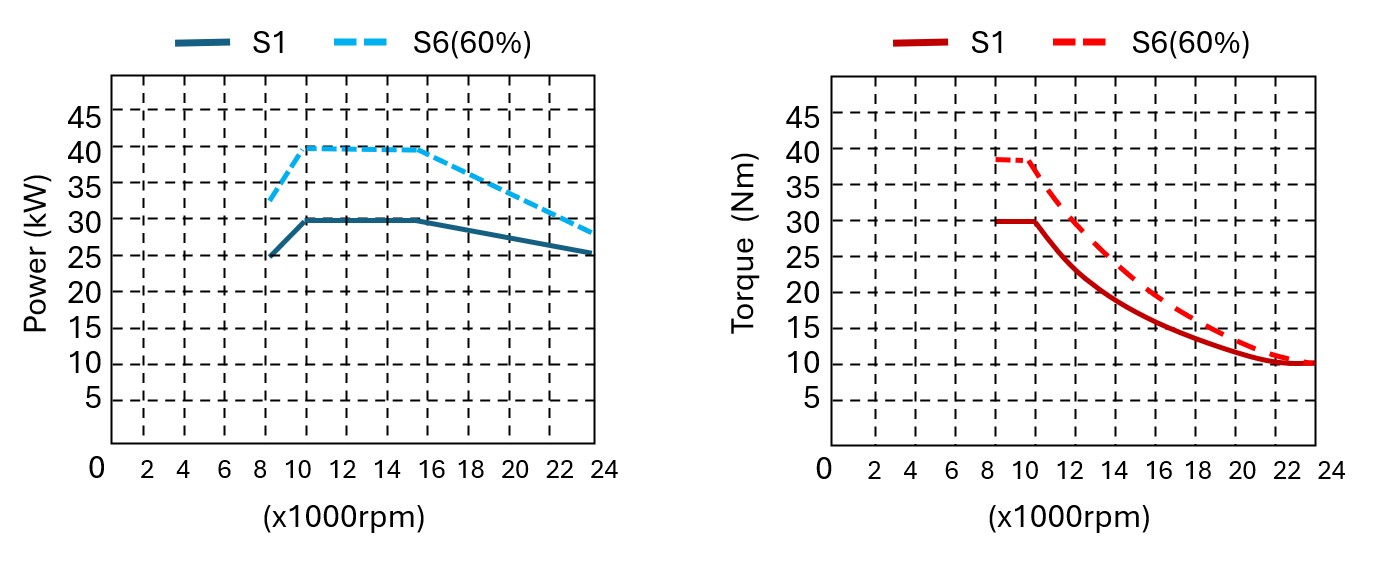

Motor Characteristics
