Specification
| Housing Diameter (mm) | ϕ210h6 |
|---|---|
| Operating Speed (RPM) | 20,000 |
| Power S1/S6 (kW) | 30/34.5 |
| Nominal Speed (RPM) | 3,000 |
| Voltage (V) | 380V |
| Motor Type | Asynchronous |
| Torgue S1/S6 (Nm) | 94.9/110 |
| Bearing Lubrication | Oil-Air |
| Tool Interface | HSK-A63 |
| Motor Cooling | Water |
| Axial Rigidity (N/um) | 317 |
| Radial Rigidity (N/um) | 365 |
Features
- High Rigidity : Multi-bearing design increases rigidity and load capacity for heavy-duty machining.
- High Precision : Spindle runout below 2μm ensures consistent accuracy for precision manufacturing.
- Customizable Configuration : Tool interface and coolant-through options tailored to specific machining needs.
- HSK Tool Interface : Provides rigid and precise clamping ideal for high-speed cutting.
- Encoder Integration : Improves rotational control and positioning precision.

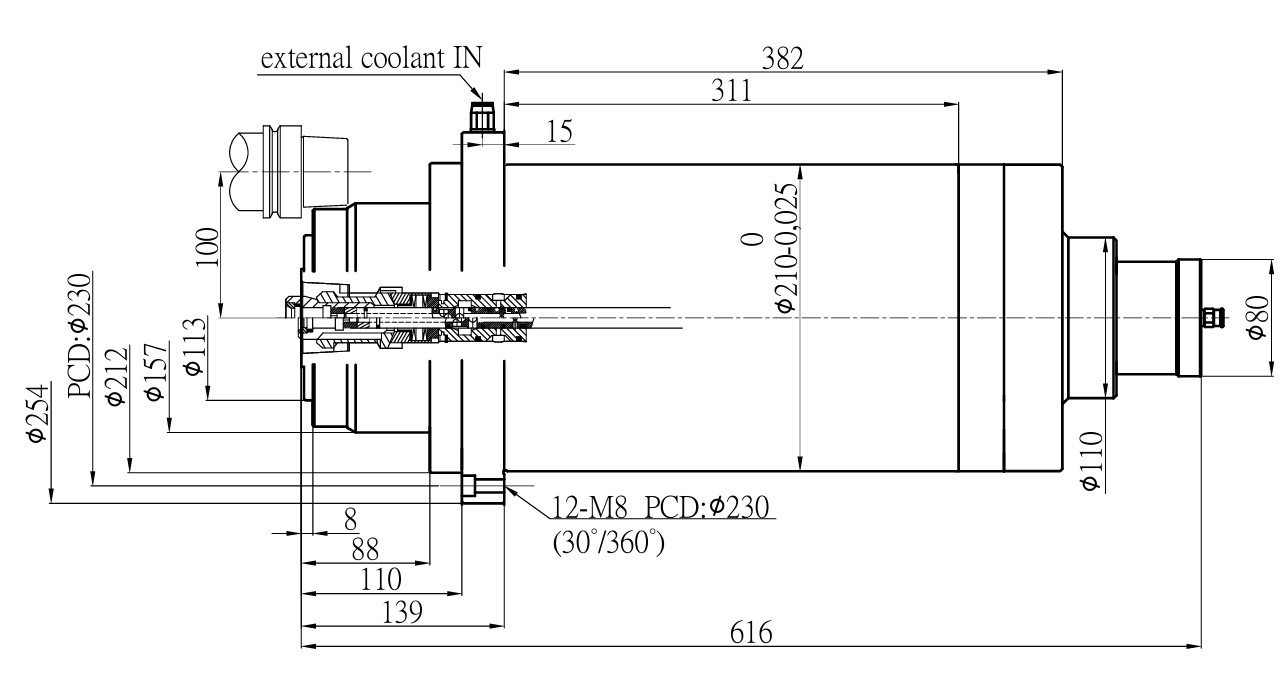

Dimensions

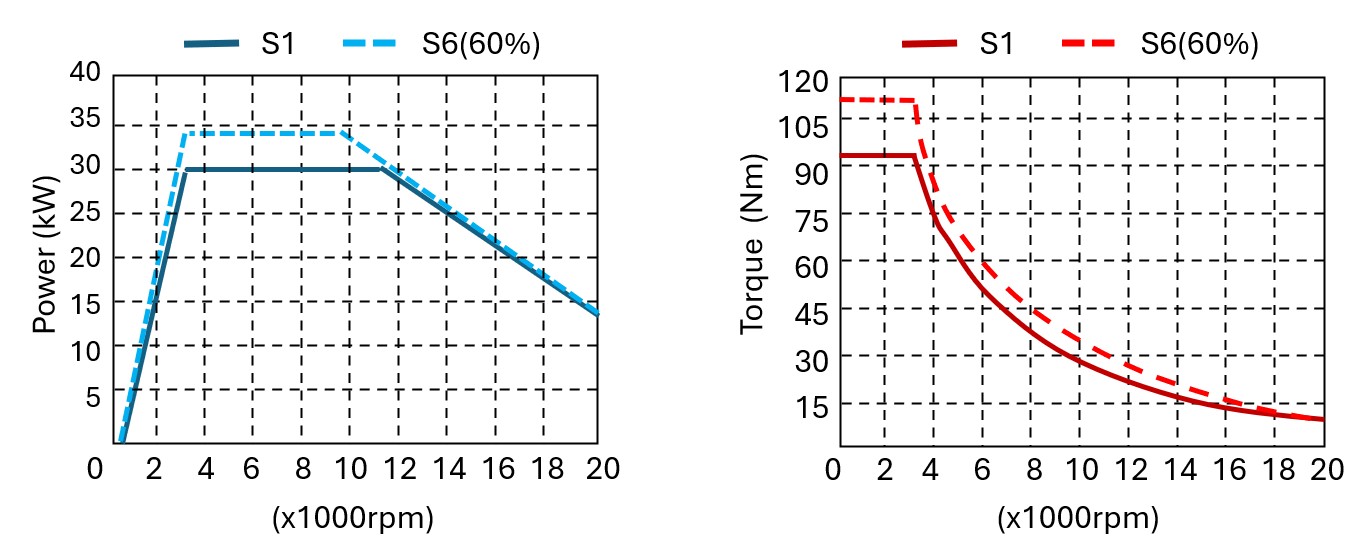

Motor Characteristics
