Specification
| Housing Diameter (mm) | ϕ210h6 |
|---|---|
| Operating Speed (RPM) | 24,000 |
| Power S1/S6 (kW) | 18/22.5 |
| Nominal Speed (RPM) | 3,000 |
| Voltage (V) | 380V |
| Motor Type | Asynchronous |
| Torgue S1/S6 (Nm) | 60.3/76.5 |
| Bearing Lubrication | Oil-Air |
| Tool Interface | HSK-A63 |
| Motor Cooling | Water |
| Axial Rigidity (N/um) | 317 |
| Radial Rigidity (N/um) | 365 |
Features
- High Rigidity : Multi-bearing design increases rigidity and load capacity for heavy-duty machining.
- High Precision : Spindle runout below 2μm ensures consistent accuracy for precision manufacturing.
- Encoder Integration : Improves rotational control and positioning precision.
- Thermal Control: Integrated water-cooling suppresses thermal growth and stabilizes temperature.
- Ceramic Bearings: High-durability ceramic bearings with low thermal expansion ensure long-term accuracy.
Dimensions

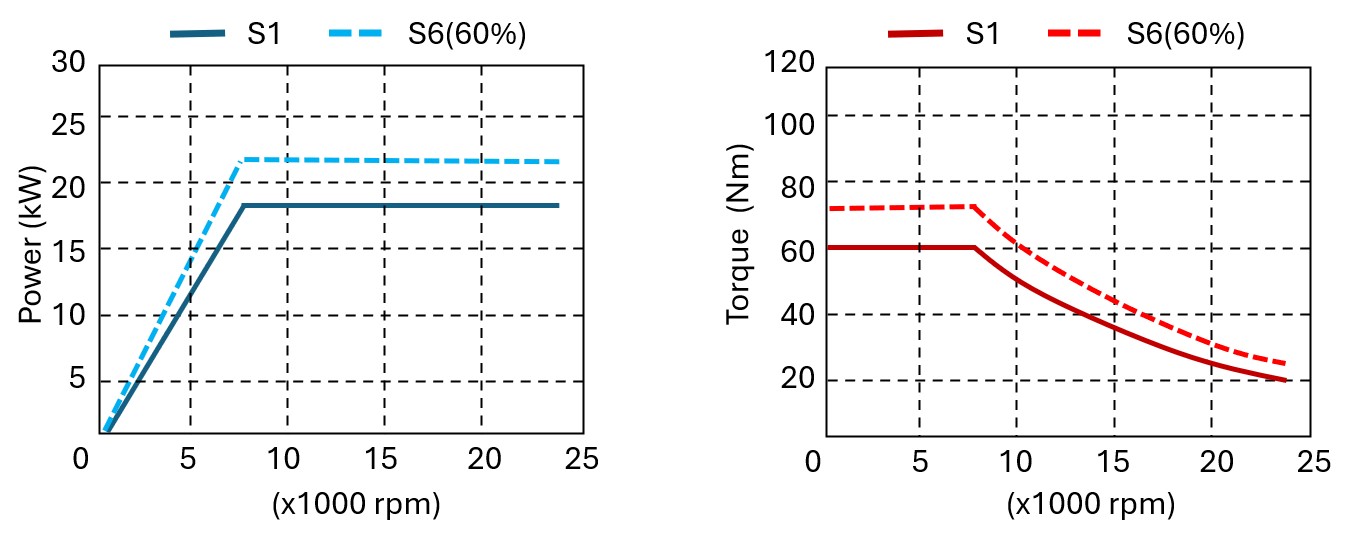

Motor Characteristics
