Specification
| Housing Diameter (mm) | ϕ240h6 |
|---|---|
| Operating Speed (RPM) | 10,000 |
| Power S1/S6 (kW) | 27/34 |
| Nominal Speed (RPM) | 2,000 |
| Voltage (V) | 380V |
| Motor Type | Asynchronous |
| Torgue S1/S6 (Nm) | 129/163 |
| Bearing Lubrication | Oil-Air |
| Tool Interface | HSK-A100 / BBT-50 |
| Motor Cooling | Water |
| Axial Rigidity (N/um) | 650 |
| Radial Rigidity (N/um) | 680 |
Features
- High Rigidity: Multi-bearing design increases rigidity and load capacity for heavy-duty machining.
- Versatile Applications : Compatible with vertical grinding machines and various precision industries.
- Customizable Configuration : Tool interface and coolant-through options tailored to specific machining needs.
- Encoder Integration : Improves rotational control and positioning precision.
- Low Vibration: Achieves G0.4 dynamic balance for reduced vibration and improved surface finish.

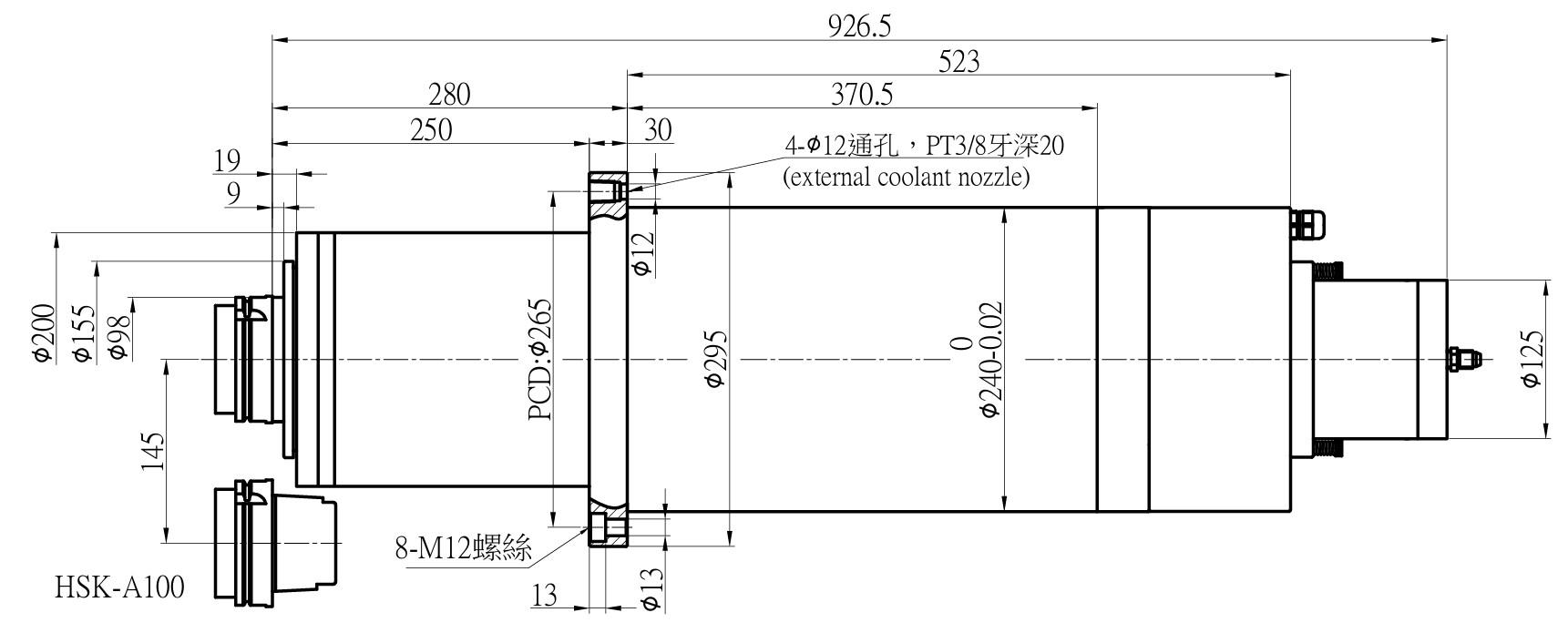

Dimensions

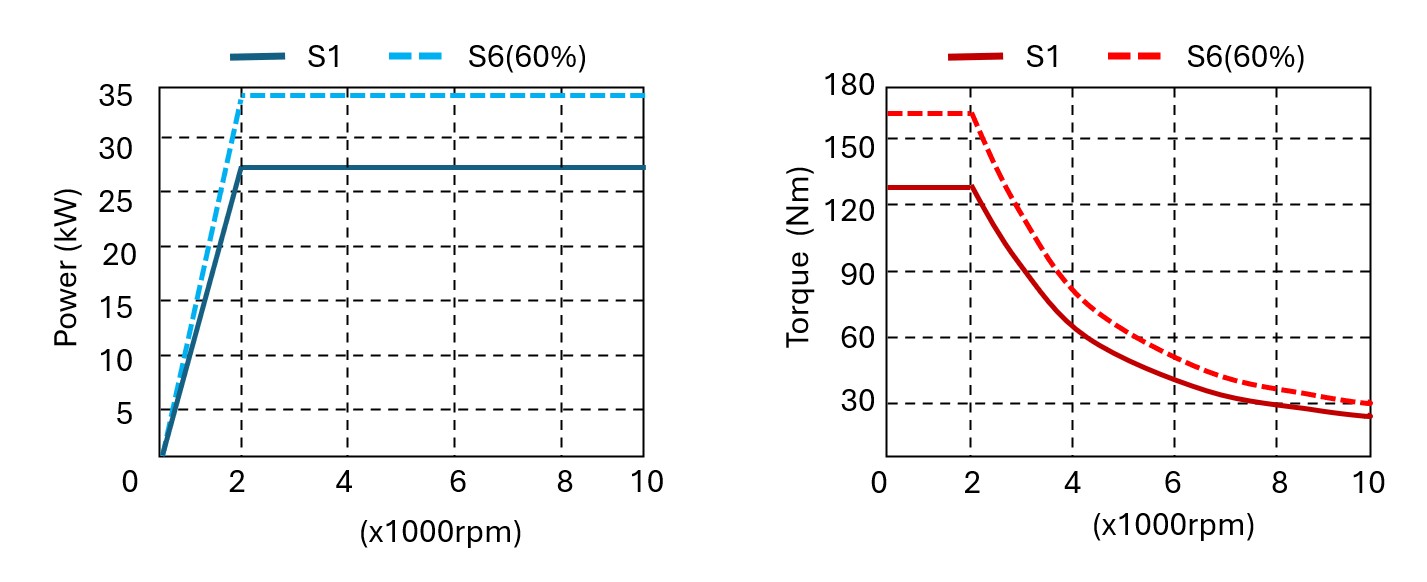

Motor Characteristics
