Specification
| Housing Diameter (mm) | ϕ45h6 |
|---|---|
| Operating Speed (RPM) | 50,000 |
| Power S1/S6 (kW) | 0.45/0.55 |
| Nominal Speed (RPM) | 40,000 |
| Voltage (V) | 220V/380V |
| Motor Type | Asynchronous |
| Torgue S1/S6 (Nm) | 0.1/0.12 |
| Bearing Lubrication | Grease |
| Tool Interface | SD-6 |
| Motor Cooling | Water |
| Axial Rigidity (N/um) | 17 |
| Radial Rigidity (N/um) | 15 |
Features
- Grease Lubrication : Economical one-time grease system ensures simple maintenance.
- High Precision: Spindle runout below 2μm ensures consistent accuracy for precision manufacturing.
- Air Sealing Design : Protective air sealing prevents debris ingress and extends spindle lifespan.
- Low Vibration : Achieves G0.4 dynamic balance for reduced vibration and improved surface finish.
- Thermal Control: Integrated water-cooling suppresses thermal growth and stabilizes temperature.

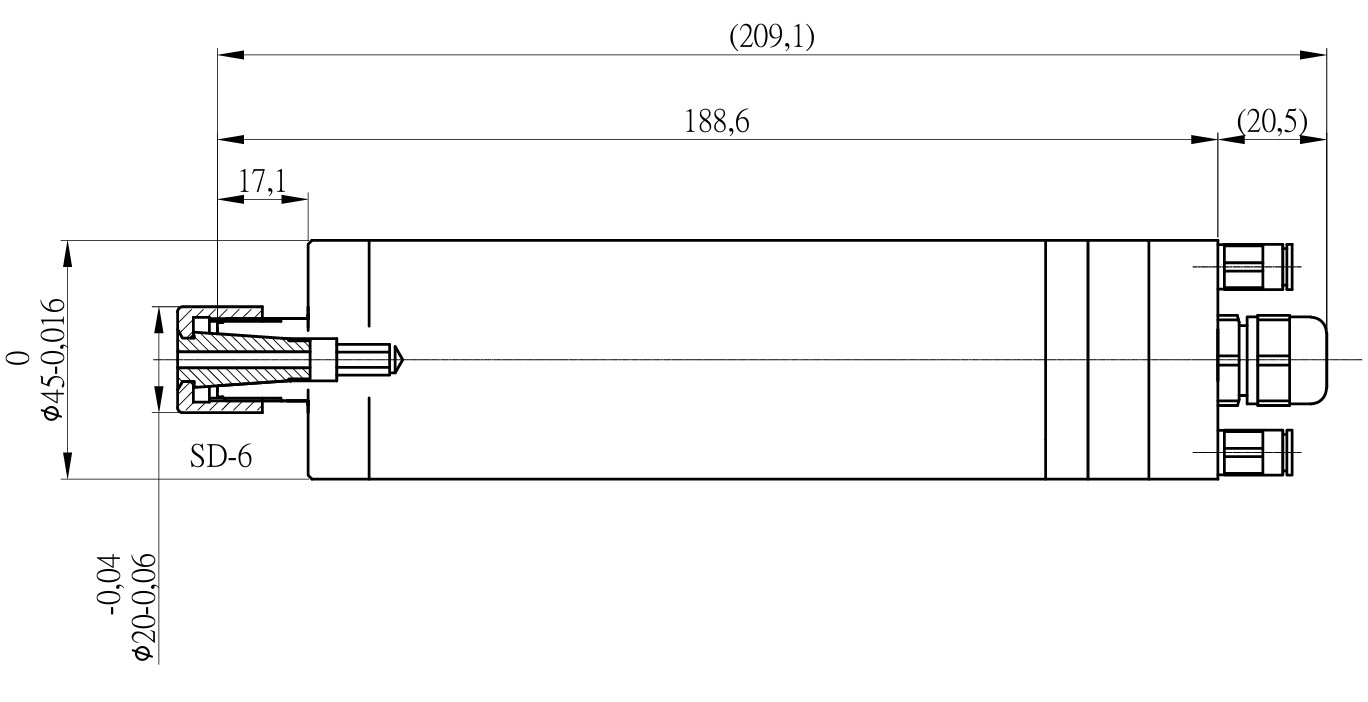

Dimensions

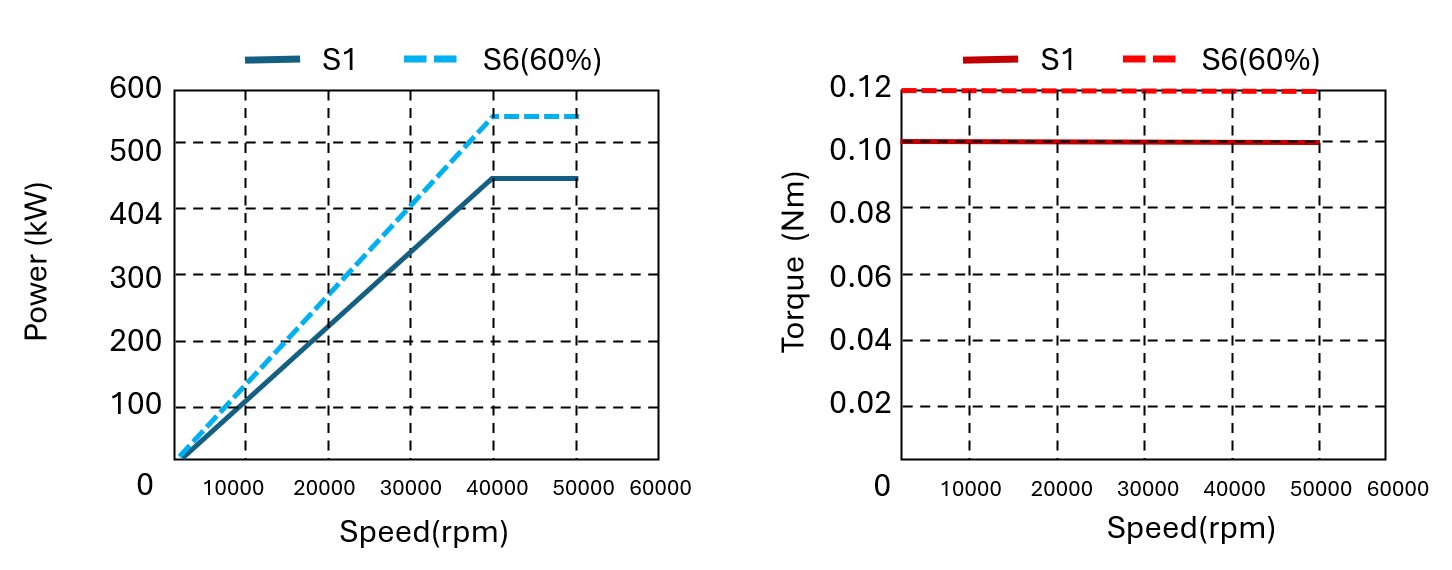

Motor Characteristics
