Specification
| Housing Diameter (mm) | ϕ61.91h6 |
|---|---|
| Operating Speed (RPM) | 60,000 |
| Power S1/S6 (kW) | 1/1.2 |
| Nominal Speed (RPM) | 36,000 |
| Voltage (V) | 220V |
| Motor Type | Asynchronous |
| Torgue S1/S6 (Nm) | 0.28/0.33 |
| Bearing Lubrication | Grease |
| Tool Interface | Collet |
| Motor Cooling | Water |
| Axial Rigidity (N/um) | 30 |
| Radial Rigidity (N/um) | 40 |
Features
- Ceramic Bearings: High-durability ceramic bearings with low thermal expansion ensure long-term accuracy.
- Ultra-High Speed : Supports speeds for micro machining and high-efficiency grinding.
- Grease Lubrication: Economical one-time grease system ensures simple maintenance.
- Low Vibration : Achieves G0.4 dynamic balance for reduced vibration and improved surface finish.
- Thermal Control: Integrated water-cooling suppresses thermal growth and stabilizes temperature.

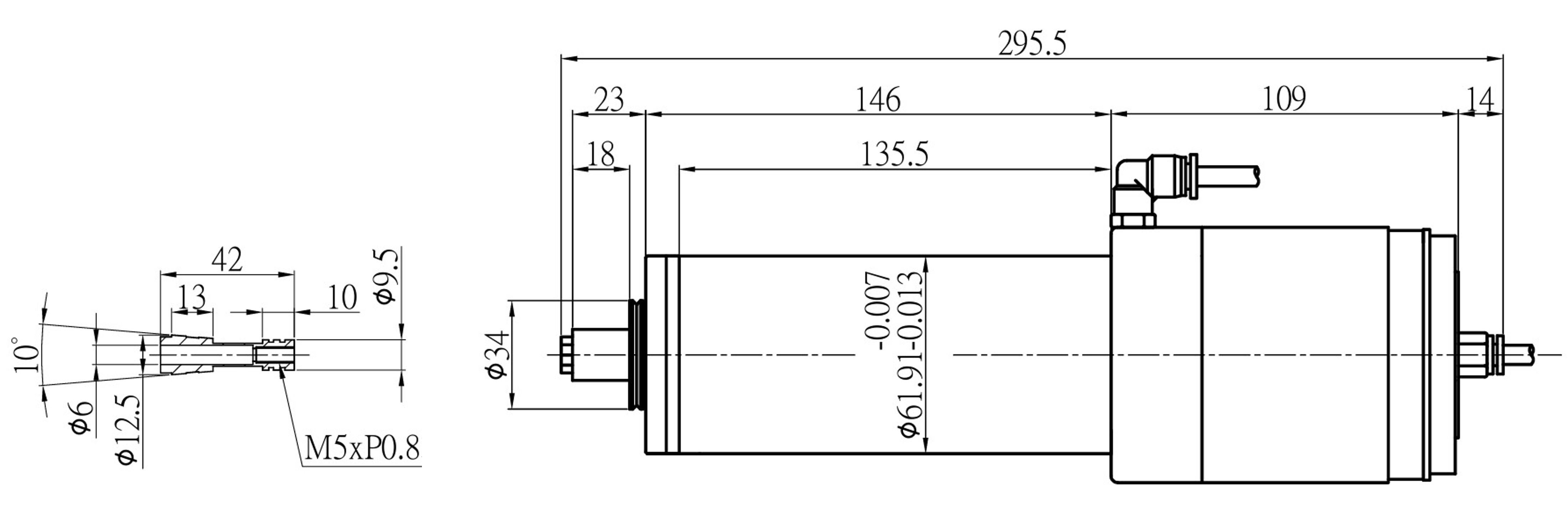

Dimensions

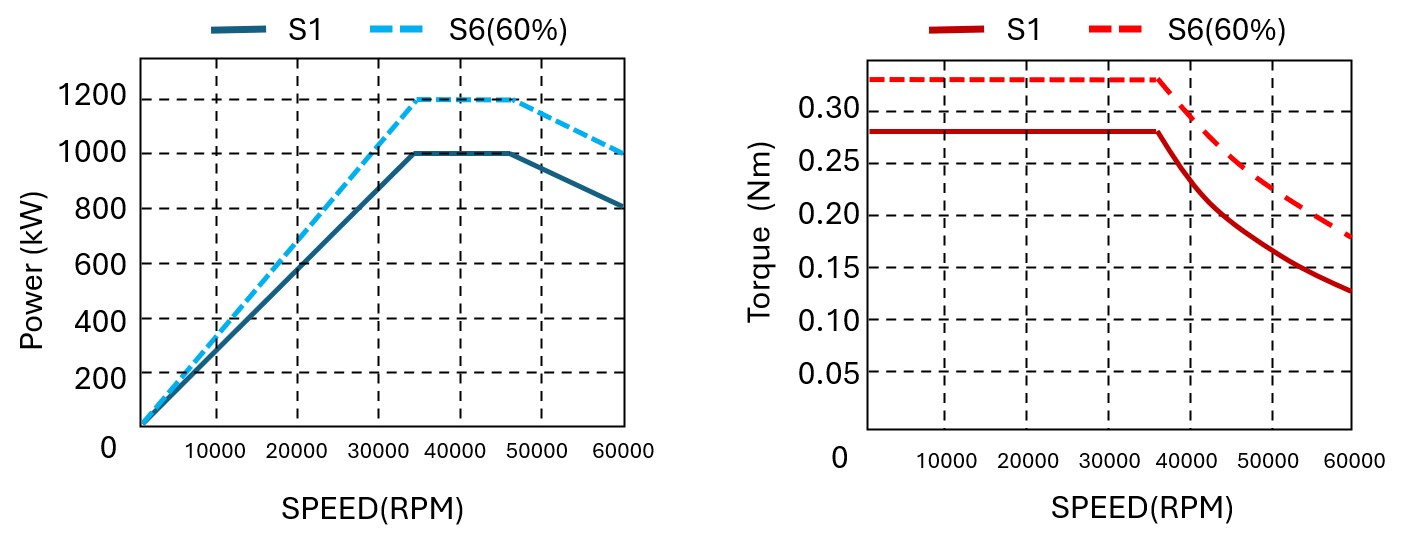

Motor Characteristics
