Specification
| Housing Diameter (mm) | ϕ80h6 |
|---|---|
| Operating Speed (RPM) | 40,000 |
| Power S1/S6 (kW) | 2.5/3.3 |
| Nominal Speed (RPM) | 40,000 |
| Voltage (V) | 380V/220V |
| Motor Type | Asynchronous |
| Torgue S1/S6 (Nm) | 0.6/0.81 |
| Bearing Lubrication | Grease |
| Tool Interface | HSK-E25 / ISO-20 |
| Motor Cooling | Water |
| Axial Rigidity (N/um) | 50 |
| Radial Rigidity (N/um) | 52 |
Features
- Ceramic Bearings : High-durability ceramic bearings with low thermal expansion ensure long-term accuracy.
- Grease Lubrication : Economical one-time grease system ensures simple maintenance.
- Air Sealing Design: Protective air sealing prevents debris ingress and extends spindle lifespan.
- High Precision : Spindle runout below 2μm ensures consistent accuracy for precision manufacturing.
- Low Vibration: Achieves G0.4 dynamic balance for reduced vibration and improved surface finish.

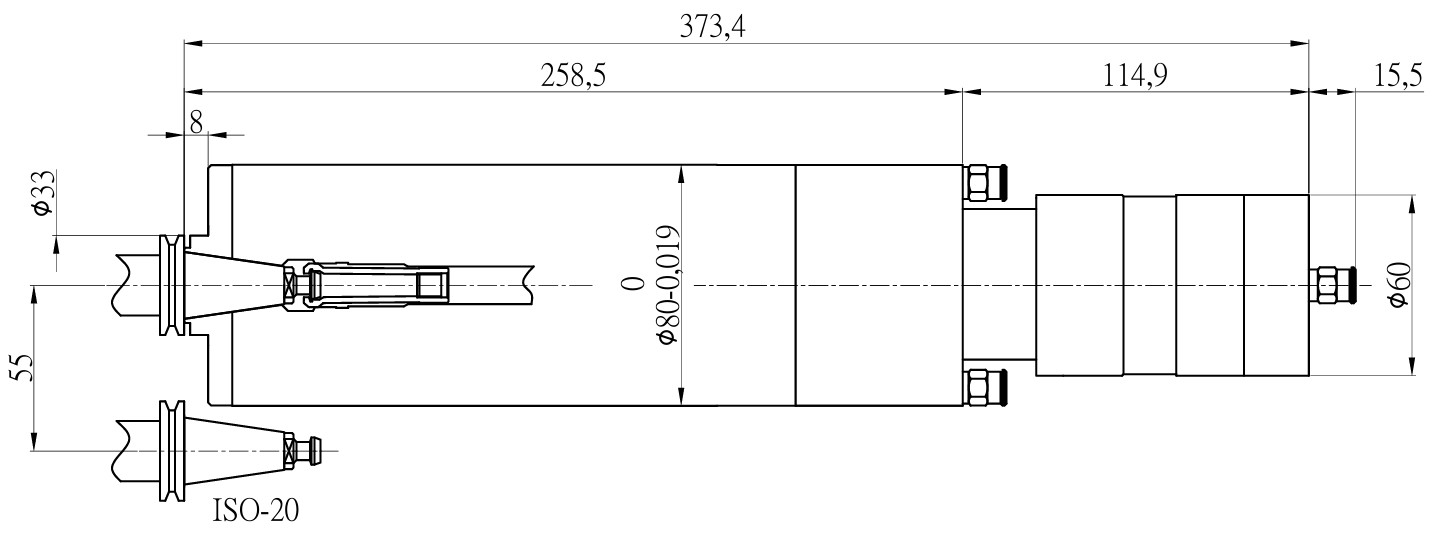

Dimensions

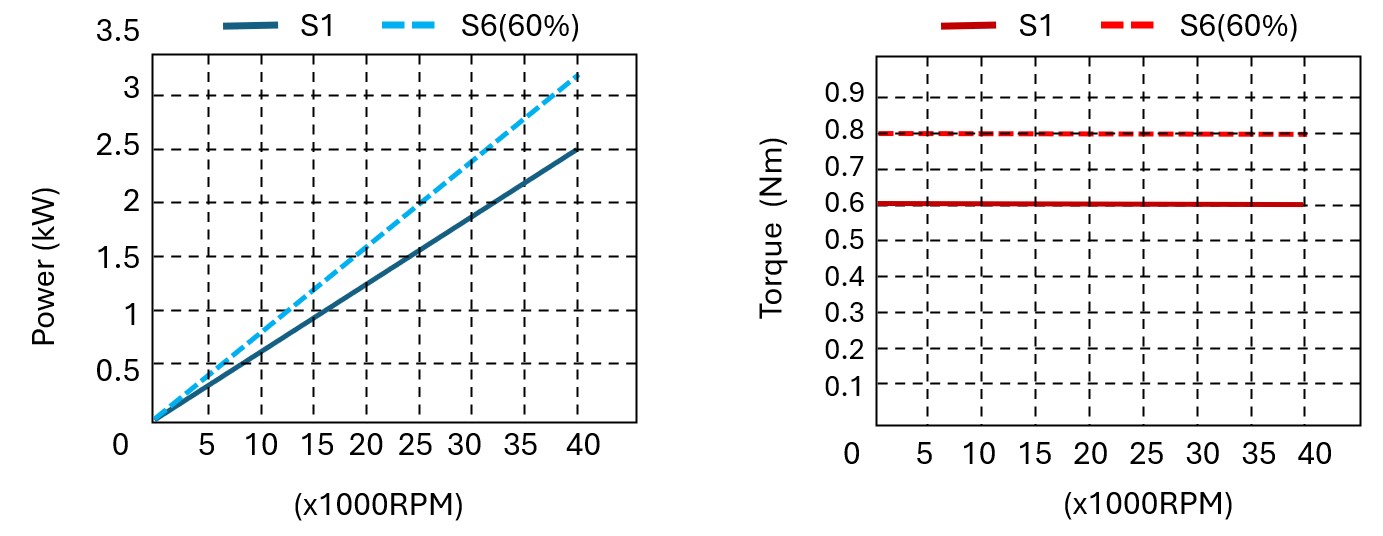

Motor Characteristics
