Specification
| Housing Diameter (mm) | ϕ100h6 |
|---|---|
| Operating Speed (RPM) | 30,000 |
| Power S1/S6 (kW) | 7/8.5 |
| Nominal Speed (RPM) | 21,000 |
| Voltage (V) | 380V |
| Motor Type | Asynchronous |
| Torgue S1/S6 (Nm) | 3.3/4.0 |
| Bearing Lubrication | Grease |
| Tool Interface | HSK-E32 / ISO-25 |
| Motor Cooling | Water |
| Axial Rigidity (N/um) | 88 |
| Radial Rigidity (N/um) | 120 |
Features
- Ceramic Bearings : High-durability ceramic bearings with low thermal expansion ensure long-term accuracy.
- Air Sealing Design: Protective air sealing prevents debris ingress and extends spindle lifespan.
- High Precision : Spindle runout below 2μm ensures consistent accuracy for precision manufacturing.
- Low Vibration: Achieves G0.4 dynamic balance for reduced vibration and improved surface finish.
- Grease Lubrication: Economical one-time grease system ensures simple maintenance.
Dimensions

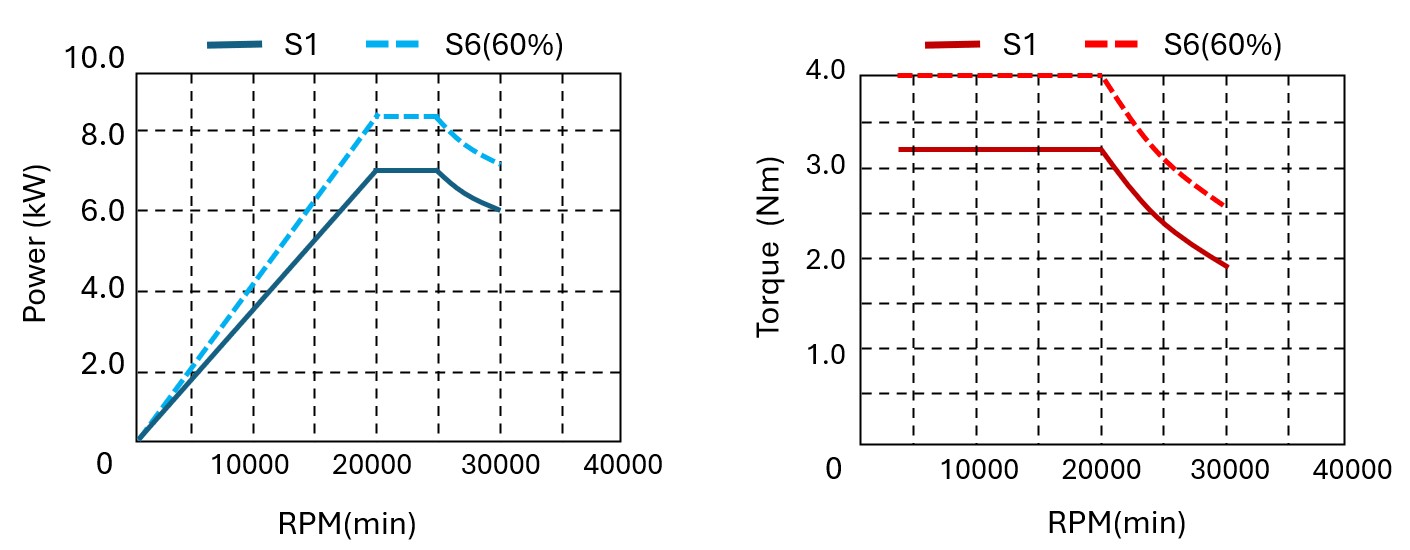

Motor Characteristics
