Specification
| Housing Diameter (mm) | ϕ120h6 |
|---|---|
| Operating Speed (RPM) | 24,000 |
| Power S1/S6 (kW) | 4.5/5.4 |
| Nominal Speed (RPM) | 10,000 |
| Voltage (V) | 220V |
| Motor Type | Asynchronous |
| Torgue S1/S6 (Nm) | 4.5/5.4 |
| Bearing Lubrication | Grease |
| Tool Interface | HSK-E40 / BBT-30 |
| Motor Cooling | Water |
| Axial Rigidity (N/um) | 110 |
| Radial Rigidity (N/um) | 159 |
Features
- Ceramic Bearings : High-durability ceramic bearings with low thermal expansion ensure long-term accuracy.
- Grease Lubrication : Economical one-time grease system ensures simple maintenance.
- Air Sealing Design: Protective air sealing prevents debris ingress and extends spindle lifespan.
- High Precision : Spindle runout below 2μm ensures consistent accuracy for precision manufacturing.
- Low Vibration: Achieves G0.4 dynamic balance for reduced vibration and improved surface finish.

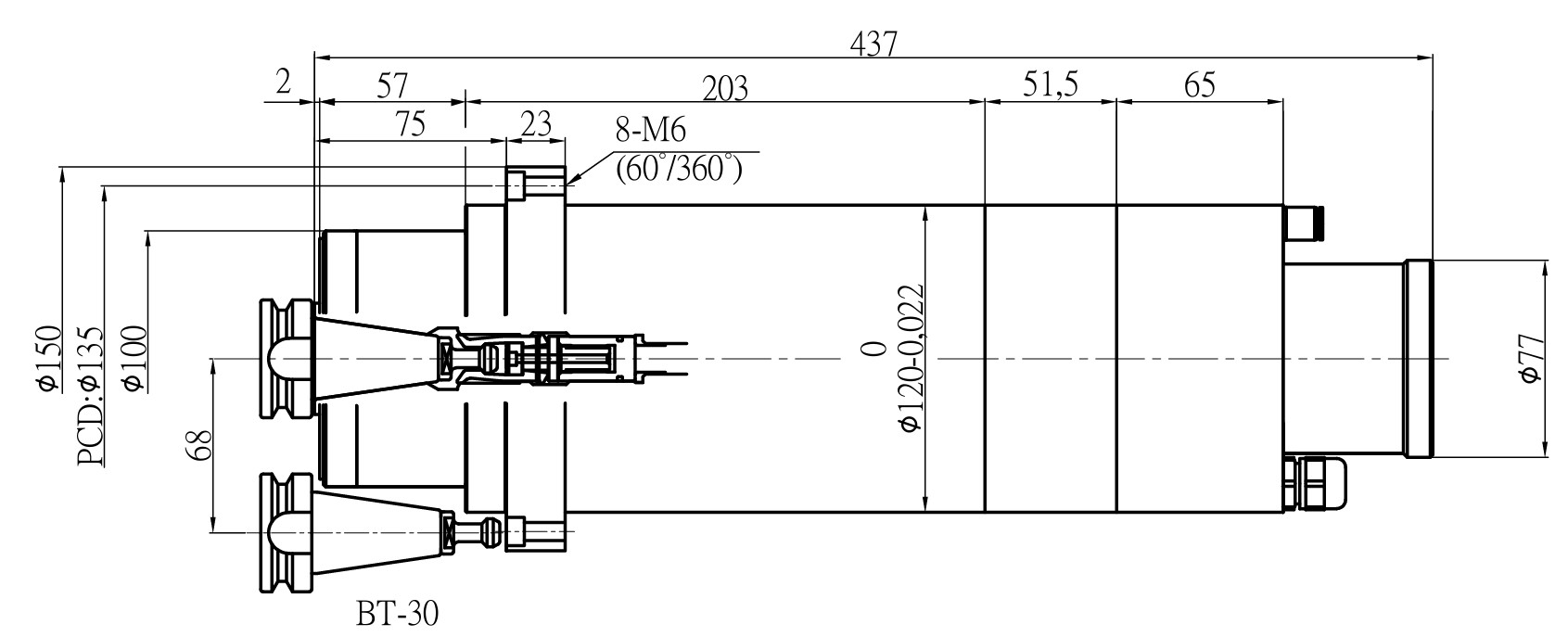

Dimensions

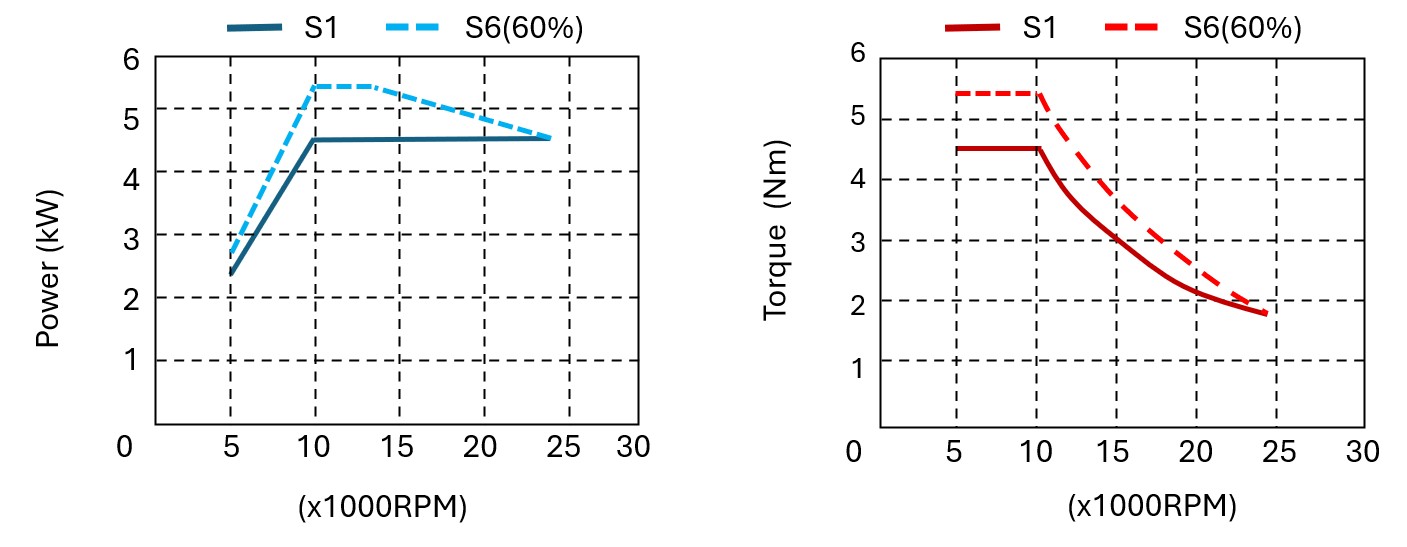

Motor Characteristics
