Specification
| Housing Diameter (mm) | ϕ58 |
|---|---|
| Operating Speed (RPM) | 25,000 |
| Power S1/S6 (kW) | 0.58 |
| Nominal Speed (RPM) | 25,000 |
| Voltage (V) | 220V |
| Motor Type | Synchronous |
| Torgue S1/S6 (Nm) | 0.22 |
| Bearing Lubrication | Grease |
| Tool Interface | ϕ20*10 |
| Motor Cooling | Air |
Features
- Permanent Magnet Motor : Energy-efficient PM motor delivers high power and boosts spindle performance.
- Air Cooling : Air-cooled system eliminates need for chillers and reduces operational cost.
- Air Sealing Design: Protective air sealing prevents debris ingress and extends spindle lifespan.
- Green Energy Design: Low carbon, energy-saving features aligned with sustainable manufacturing.
- High Precision: Spindle runout below 2μm ensures consistent accuracy for precision manufacturing.

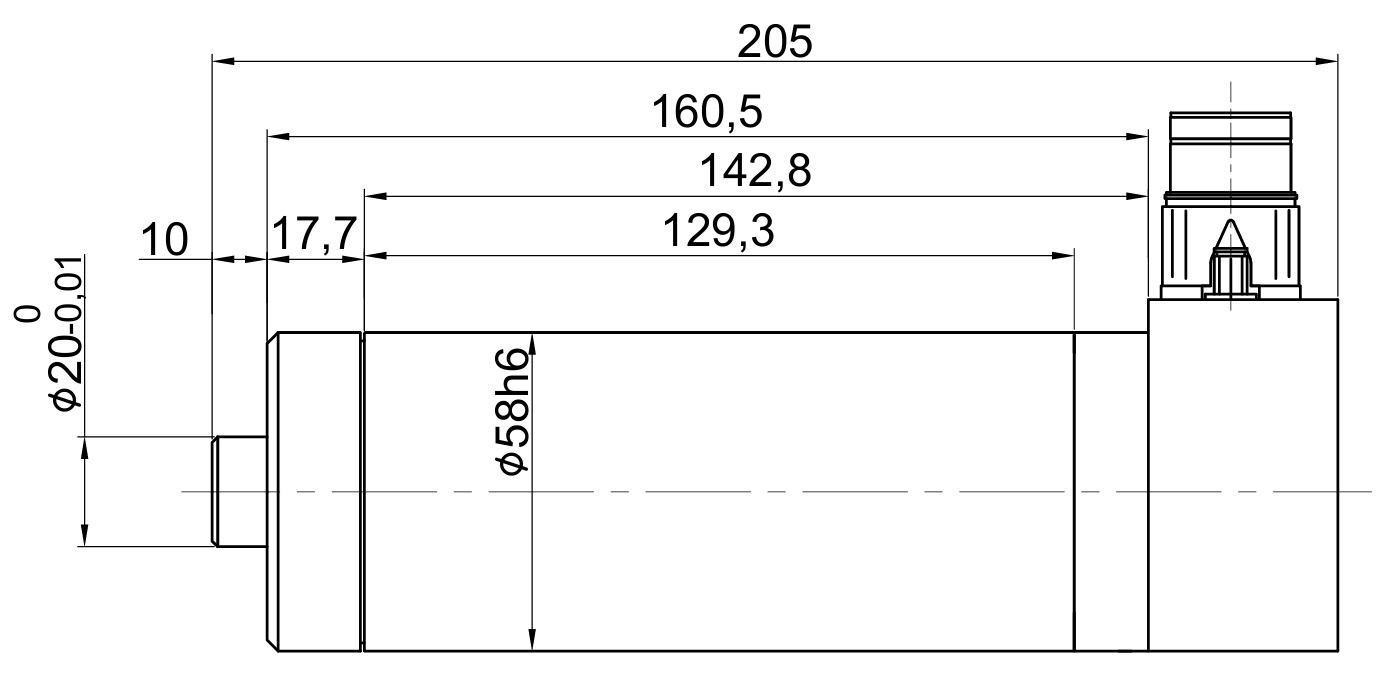

Dimensions

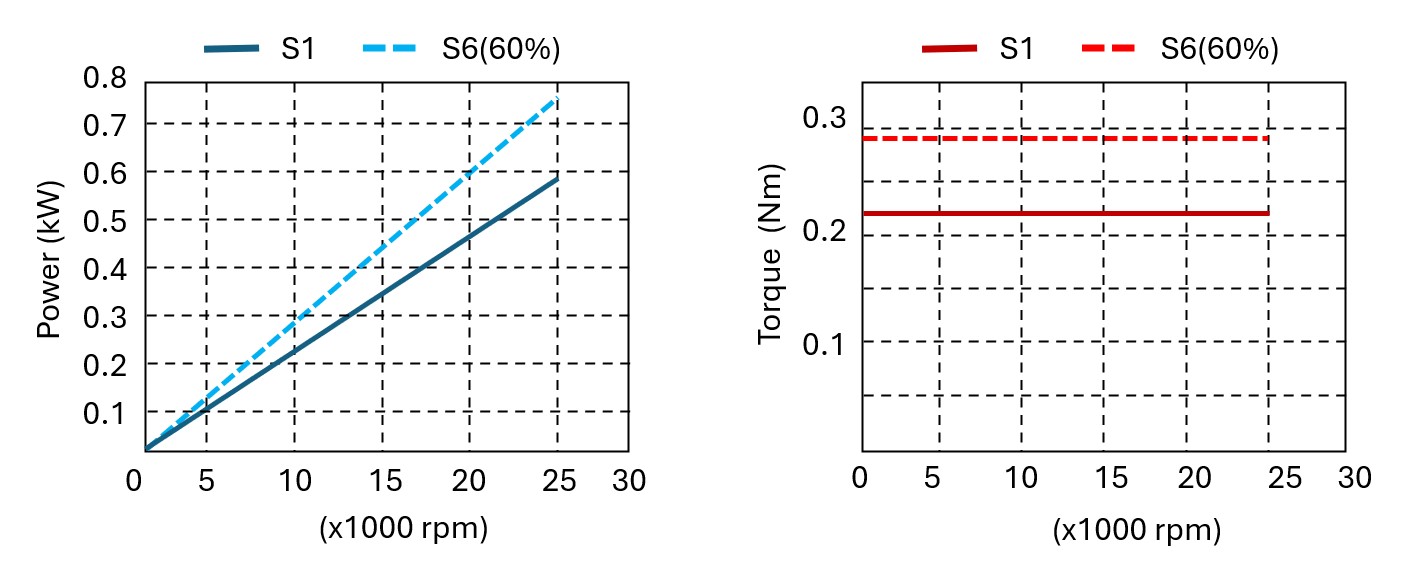

Motor Characteristics
