Specification
| Housing Diameter (mm) | ϕ80 |
|---|---|
| Operating Speed (RPM) | 16,000 |
| Power S1/S6 (kW) | 3.7/4.4 |
| Nominal Speed (RPM) | 11,000 |
| Voltage (V) | 220 |
| Motor Type | Synchronous |
| Torgue S1/S6 (Nm) | 3.2/3.8 |
| Bearing Lubrication | Grease |
| Tool Interface | ϕ40*10 |
| Motor Cooling | Water |
| Axial Rigidity (N/um) | 90 |
| Radial Rigidity (N/um) | 75 |
Features
- Permanent Magnet Motor: Energy-efficient PM motor delivers high power and boosts spindle performance.
- Air Sealing Design: Protective air sealing prevents debris ingress and extends spindle lifespan.
- Green Energy Design: Low carbon, energy-saving features aligned with sustainable manufacturing.
- High Precision: Spindle runout below 2μm ensures consistent accuracy for precision manufacturing.
- Grease Lubrication: Economical one-time grease system ensures simple maintenance.

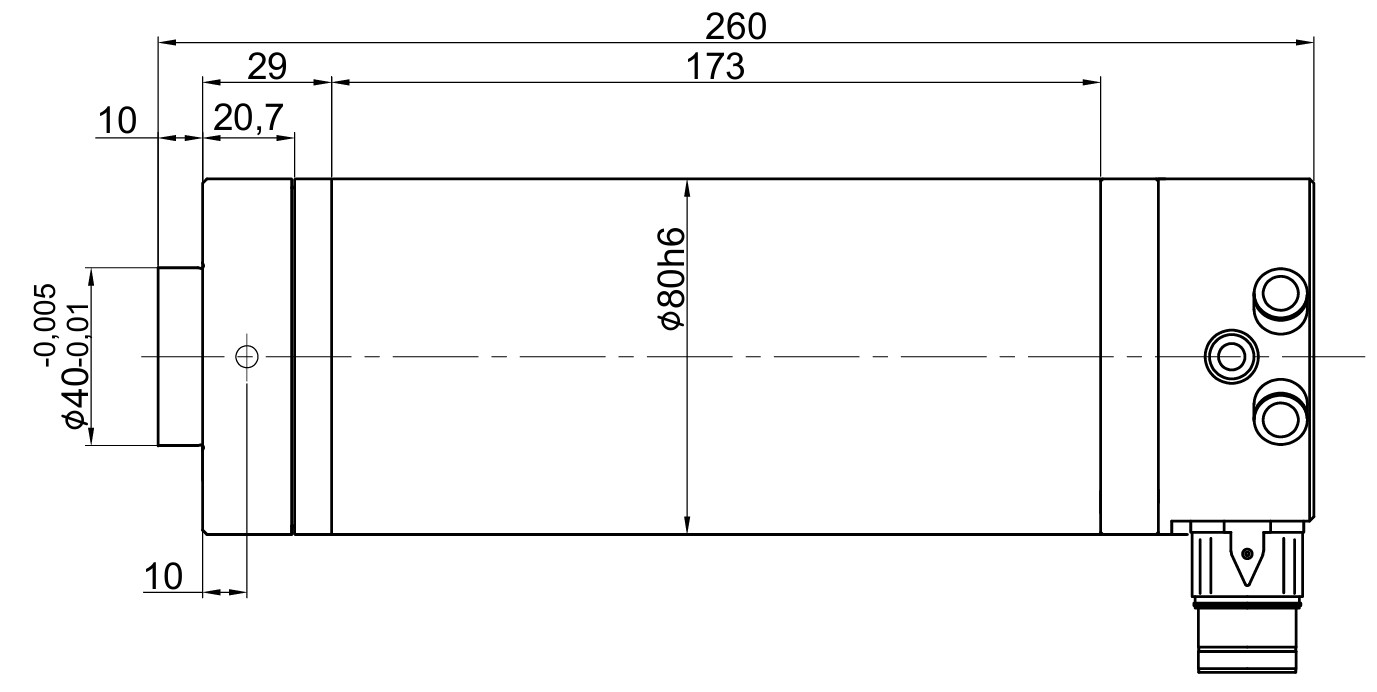

Dimensions

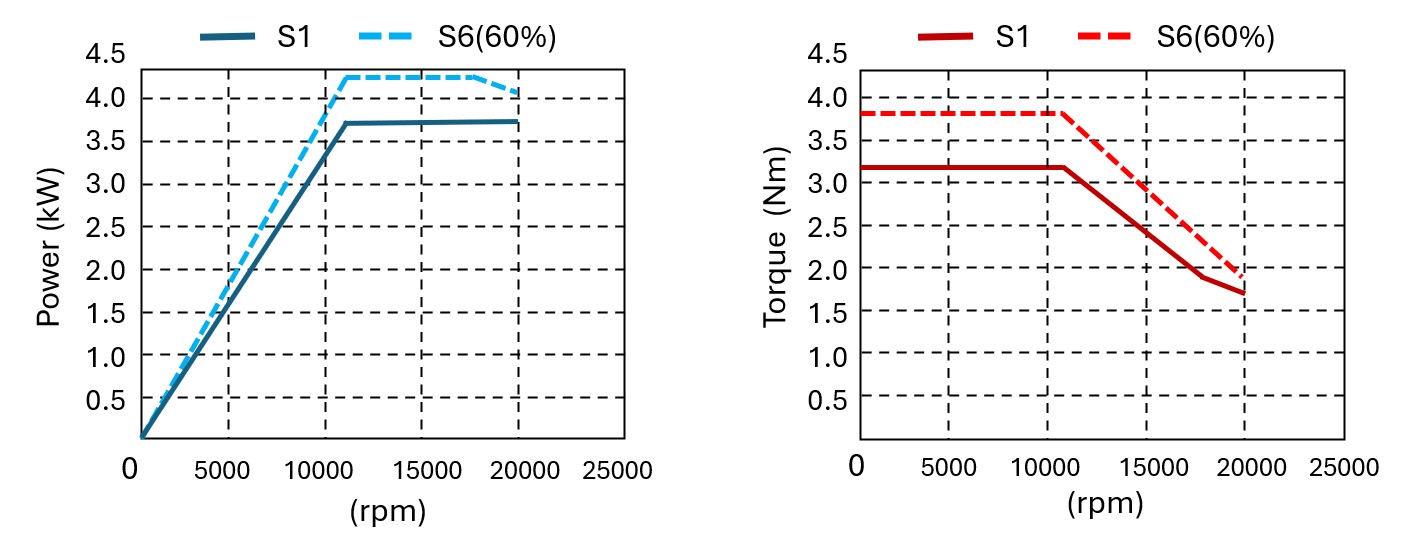

Motor Characteristics
