High-Speed External Grinding Spindle SYE-150-9K-6.5kW
Specification
| Housing Diameter (mm) | ϕ150 |
|---|---|
| Operating Speed (RPM) | 9,000 |
| Power S1/S6 (kW) | 5.5/6.5 |
| Nominal Speed (RPM) | 2,200 |
| Voltage (V) | 220/380 |
| Motor Type | Asynchronous |
| Torgue S1/S6 (Nm) | 23.3/25.9 |
| Bearing Lubrication | Grease |
| Tool Interface | ⊿ 1:5 |
| Motor Cooling | Water |
| Axial Rigidity (N/um) | 140 |
| Radial Rigidity (N/um) | 235 |
Features
- High Precision: Spindle runout below 2μm ensures consistent accuracy for precision manufacturing.
- Grease Lubrication: Economical one-time grease system ensures simple maintenance.
- Air Sealing Design: Protective air sealing prevents debris ingress and extends spindle lifespan.
- High Rigidity: Multi-bearing design increases rigidity and load capacity for heavy-duty machining.
- Low Vibration: Achieves G0.4 dynamic balance for reduced vibration and improved surface finish.

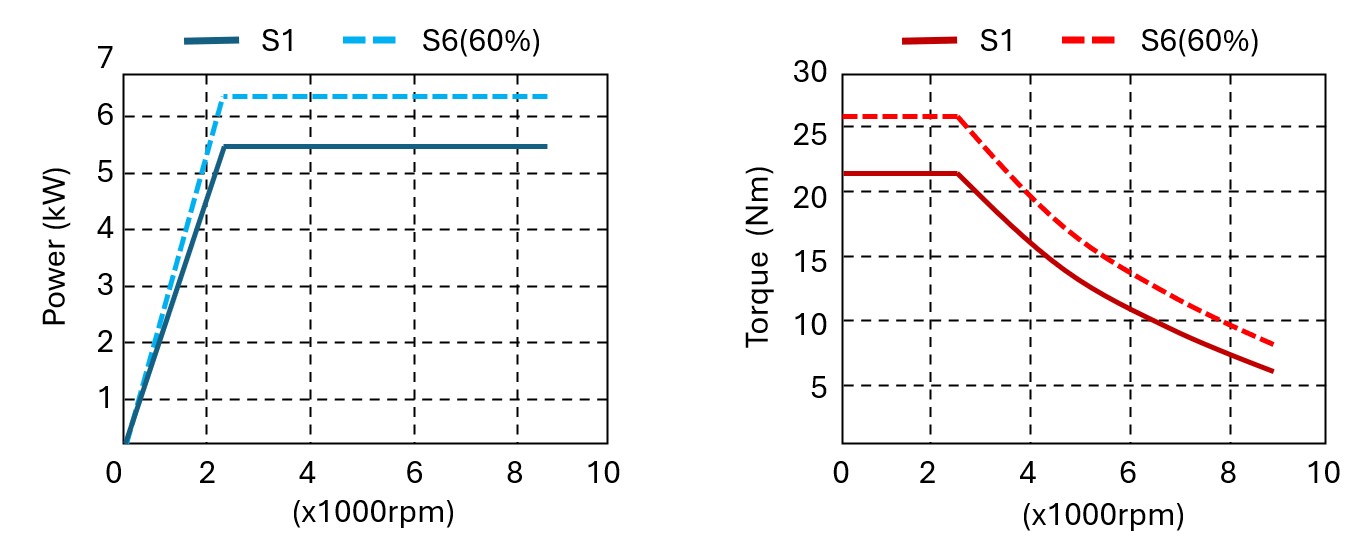

Motor Characteristics
