Specification
| Housing Diameter (mm) | ϕ100h6 |
|---|---|
| Operating Speed (RPM) | 90,000 |
| Power S1/S6 (kW) | 2.6/3.4 |
| Nominal Speed (RPM) | 90,000 |
| Voltage (V) | 380/220V |
| Motor Type | Asynchronous |
| Torgue S1/S6 (Nm) | 0.27/0.33 |
| Bearing Lubrication | Oil-Air |
| Tool Interface | M9*P1.25 |
| Motor Cooling | Water |
| Axial Rigidity (N/um) | 34 |
| Radial Rigidity (N/um) | 38 |
Features
- Extreme Speed Performance: Reaches up to 90,000 rpm, enabling ultra-high speed and precision machining.
- Designed for Micro Machining: Ideal for small-diameter internal grinding, ensuring stable and reliable accuracy.
- Low Vibration Operation: Rotor dynamic balance rated below G0.4, minimizing vibration and enhancing surface finish quality.
- Ultra-High Precision: Spindle runout controlled within 2μm, meeting strict precision grinding requirements.
- Stable Lubrication System: Equipped with ceramic bearings and oil-air lubrication, ensuring long-term, stable performance.
- Effective Thermal Management: Integrated water cooling system effectively controls thermal displacement, maintaining machining accuracy.
Dimensions

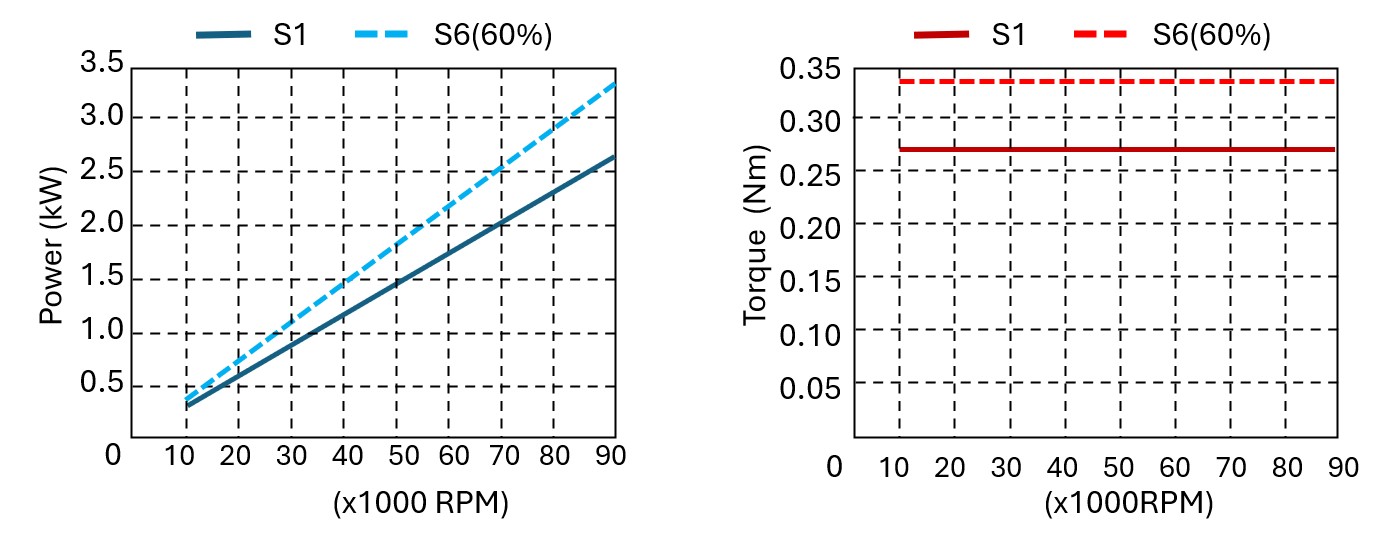

Motor Characteristics
