Specification
| Housing Diameter (mm) | ϕ120h6 |
|---|---|
| Operating Speed (RPM) | 60,000 |
| Power S1/S6 (kW) | 11/12 |
| Nominal Speed (RPM) | 51,000 |
| Voltage (V) | 350 |
| Motor Type | Asynchronous |
| Torgue S1/S6 (Nm) | 2.1/2.3 |
| Bearing Lubrication | Oil-Air |
| Tool Interface | M16*P1.5 / HSK-C25 |
| Motor Cooling | Water |
| Axial Rigidity (N/um) | 60 |
| Radial Rigidity (N/um) | 89 |
Features
- Precision Micro Machining: Ideal for small bore grinding with stable, high-resolution performance.
- Low Vibration: Achieves G0.4 dynamic balance for reduced vibration and improved surface finish.
- High Precision: Spindle runout below 2μm ensures consistent accuracy for precision manufacturing.
- Ceramic Bearings: High-durability ceramic bearings with low thermal expansion ensure long-term accuracy.
- Stable Lubrication: Oil-air lubrication delivers consistent performance and extends spindle life.

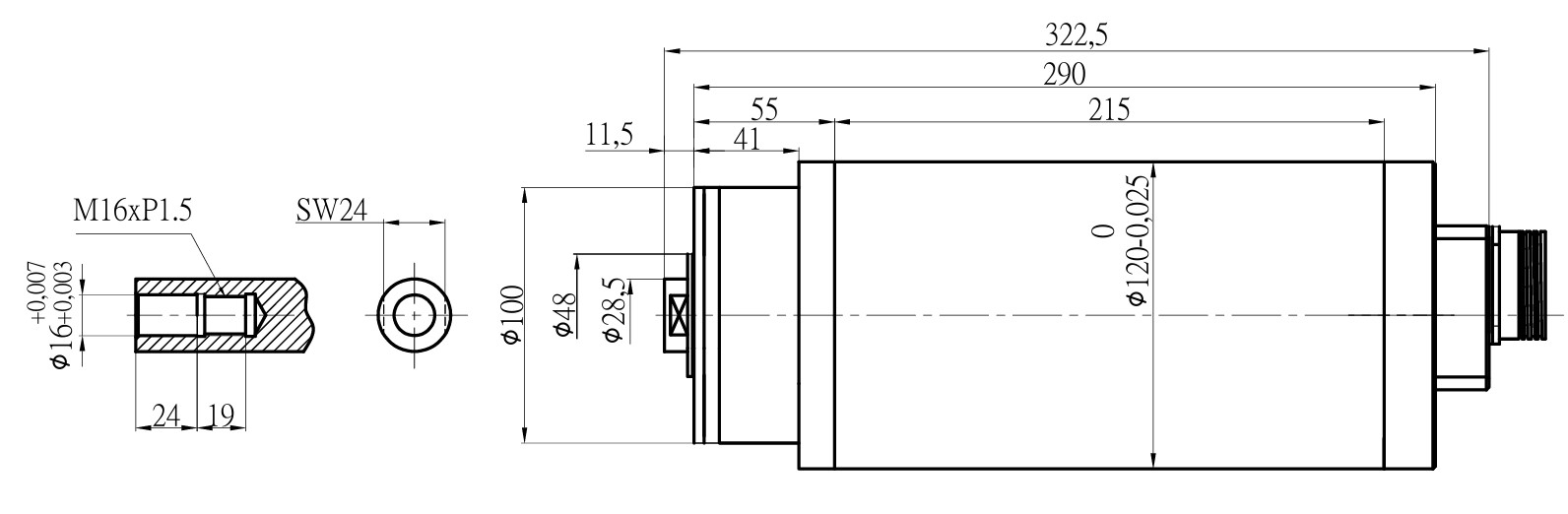

Dimensions

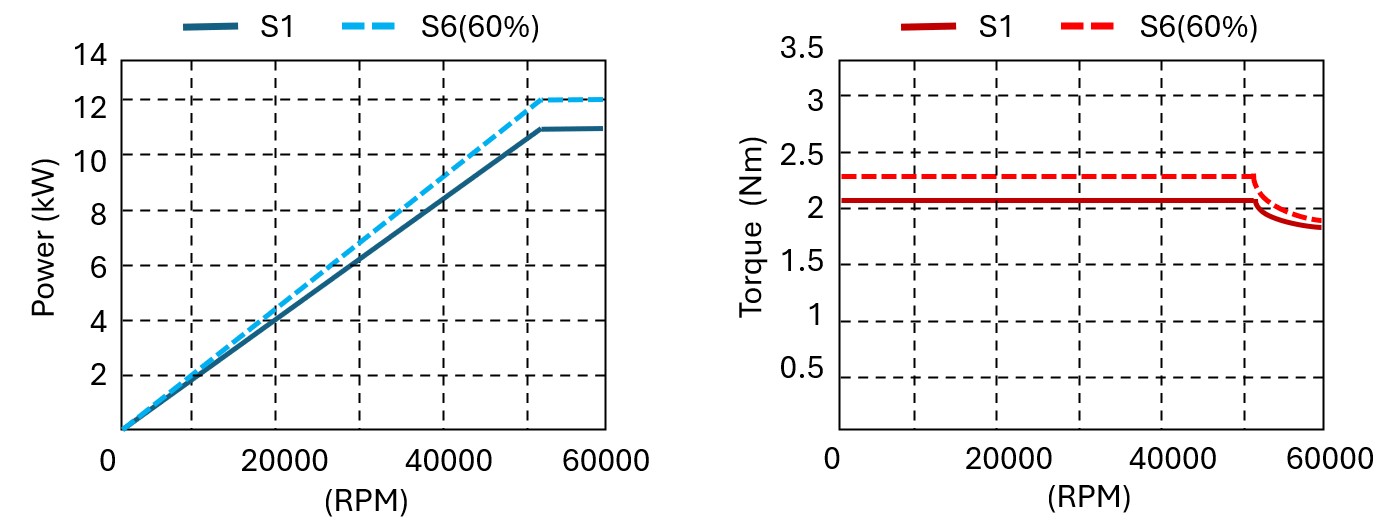

Motor Characteristics
