Specification
| Housing Diameter (mm) | ϕ150h6 |
|---|---|
| Operating Speed (RPM) | 30,000 |
| Power S1/S6 (kW) | 31/35.6 |
| Nominal Speed (RPM) | 15,000 |
| Voltage (V) | 350 |
| Motor Type | Asynchronous |
| Torgue S1/S6 (Nm) | 20/23.1 |
| Bearing Lubrication | Oil-Air |
| Tool Interface | M36*P2.0 / HSK-C63 |
| Motor Cooling | Water |
| Axial Rigidity (N/um) | 125 |
| Radial Rigidity (N/um) | 200 |
Features
- High-power spindle design: Delivers strong and stable output, ideal for heavy cutting, enhancing efficiency and machining quality.
- Low Vibration: Achieves G0.4 dynamic balance for reduced vibration and improved surface finish.
- High Precision: Spindle runout below 2μm ensures consistent accuracy for precision manufacturing.
- Ceramic Bearings: High-durability ceramic bearings with low thermal expansion ensure long-term accuracy.
- Thermal Control: Integrated water-cooling suppresses thermal growth and stabilizes temperature.
Dimensions

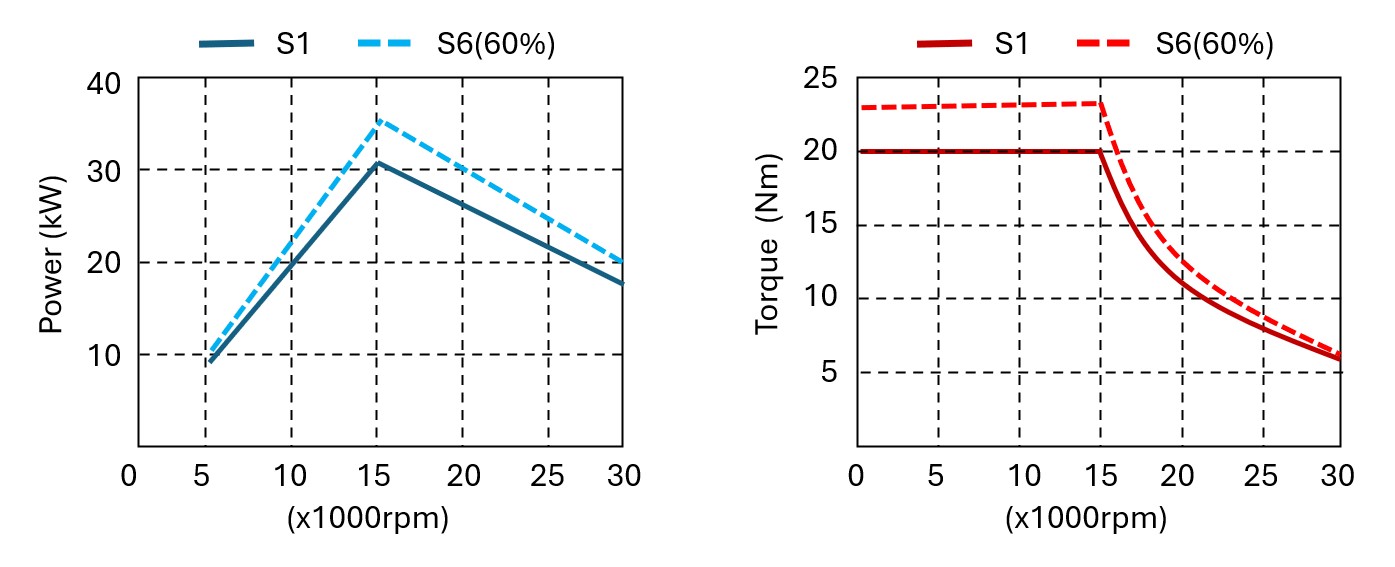

Motor Characteristics
