Specification
| Housing Diameter (mm) | ϕ150h6 |
|---|---|
| Operating Speed (RPM) | 24,000 |
| Power S1/S6 (kW) | 14/17 |
| Nominal Speed (RPM) | 11,000 |
| Voltage (V) | 350 |
| Motor Type | Asynchronous |
| Torgue S1/S6 (Nm) | 12/14.5 |
| Bearing Lubrication | Oil-Air |
| Tool Interface | M36*P2.0 / HSK-C63 |
| Motor Cooling | Water |
| Axial Rigidity (N/um) | 130 |
| Radial Rigidity (N/um) | 193 |
Features
- High Rigidity: Multi-bearing design increases rigidity and load capacity for heavy-duty machining.
- Precision Micro Machining: Ideal for small bore grinding with stable, high-resolution performance.
- Low Vibration: Achieves G0.4 dynamic balance for reduced vibration and improved surface finish.
- Stable Lubrication: Oil-air lubrication delivers consistent performance and extends spindle life.
- Ceramic Bearings: High-durability ceramic bearings with low thermal expansion ensure long-term accuracy.

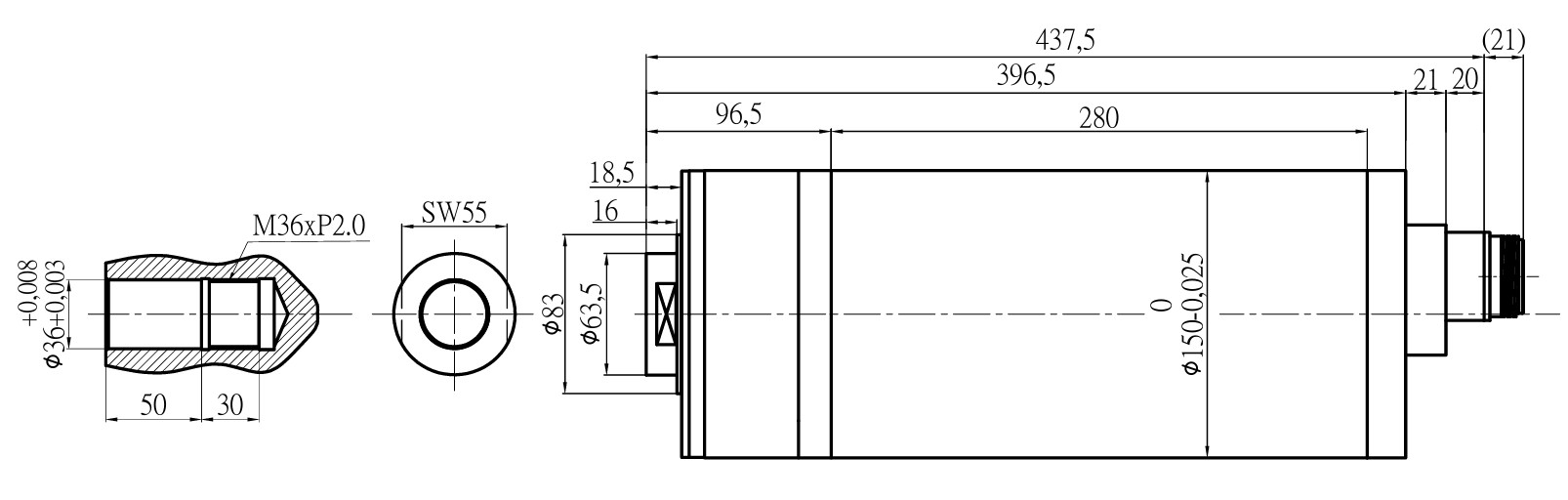

Dimensions

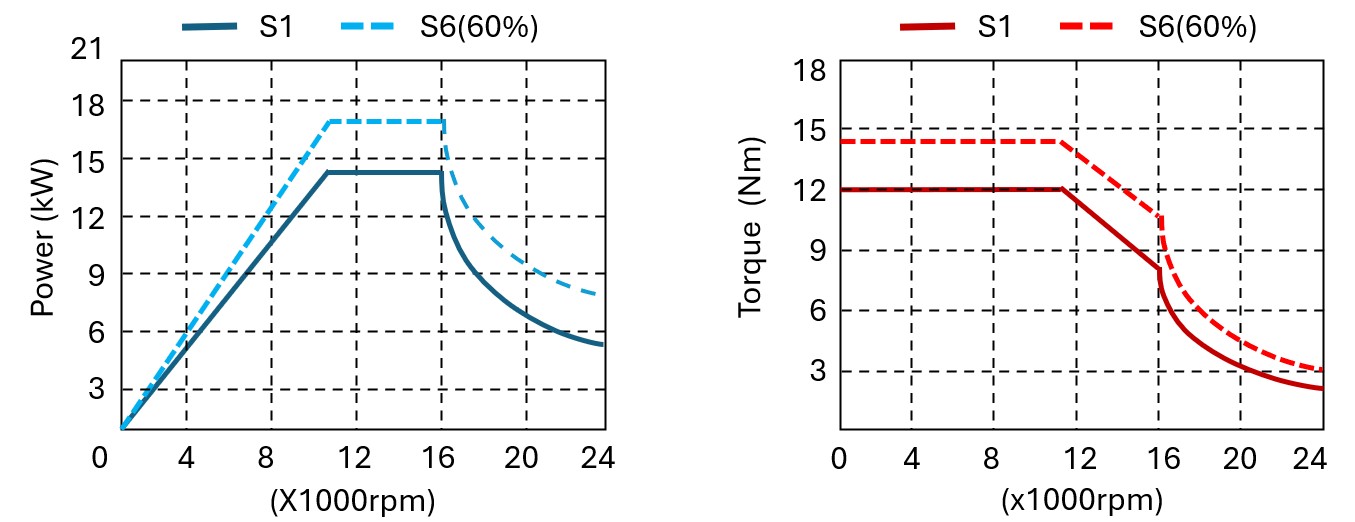

Motor Characteristics
